Produktdetails:
|
| Abschleifend: | Aluminiumoxid SA | Farbe: | schwarz |
|---|---|---|---|
| Härte: | R | Maximale Arbeitsgeschwindigkeit: | 80 M/S |
| Korngröße: | 24#, 30#, 46#, | Iterm NEIN.: | DSC2303223 |
| Anwendung: | Eisenmetallstahl und Inox | Bindemittel: | Harz verpfändet |
| Laubengröße: | 7/8 Zoll | Scheibenartig: | Deprimierte Mittelart |
| Hervorheben: | 230mm raue Schleifscheibe,230x6mm raue Schleifscheibe,230mm Inox Schleifscheibe |
||

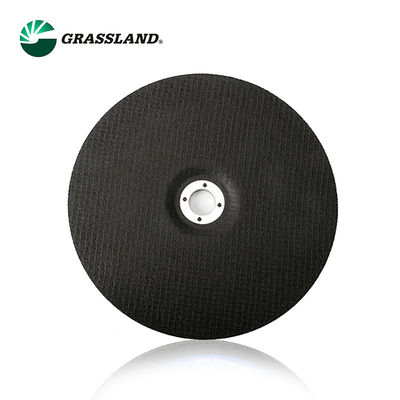

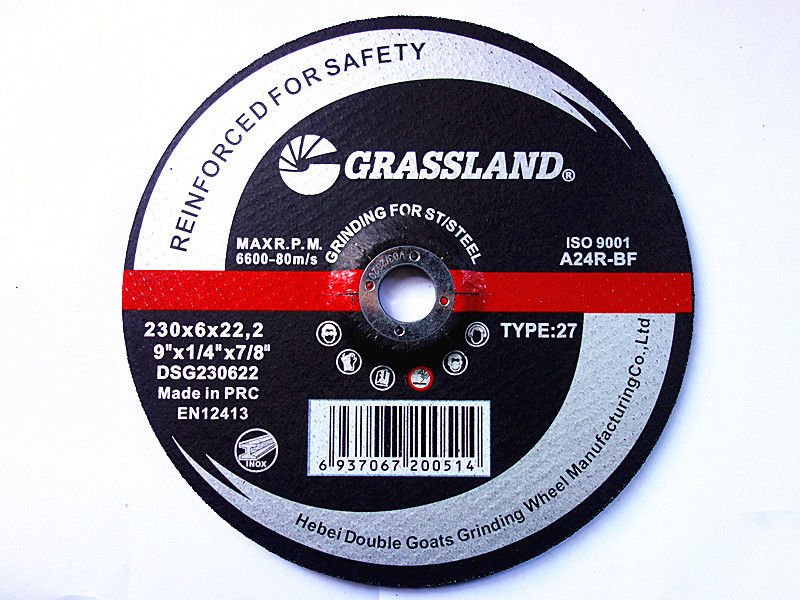

Abkürzungs-Disketten Wiesen-raue Schleifscheibe-Scheibenrad Inox 230x6mm
Produkt-Beschreibung--
| Schnitt von Radinformationen: | |||
| Produkt-Name | 230mm inox raue Disketten | Scheuermittel | Monokristalline fixierte Tonerde |
| Härte | R-Grad | Nettostandard | hochfestes verstärktes Fiberglas |
| Maximale Arbeitsgeschwindigkeit |
80 m/s
|
Soem-Service | Annehmbar |
| R.P.M | 8600 | Paket |
Kraftpapier-Karton und -palette
|
| Korngröße | 24#, 30#, 46#, | HS-Code | 68042210 |
|
Zertifikat
|
MPA EN12413, ISO9001
|
Verladehafen | Tianjin oder sonst |
- Deprimierte Mitte Inox-Schleifscheiben
| Einzelteil-Code | Maß | Maß | Geschwindigkeit | Standard |
| (Millimeter) | (Zoll) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Warenbeschreibung | Kein Einzelteil | Spezifikation | Einheit | PCS/CTN | N.W./G.W. (KILOGRAMM) | KARTON-GRÖSSE (CM) |
| Niedergedrückte Schleifscheibe für inox 80m/s | DSG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DSG1006016 | T27-100X6.0X16MM | PC | 200 | 22/23 | 22*22*35.7 | |
| DSG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DSG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DSG1157022 | T27-115X7.0X22.2MM | PC | 100 | 16.5/17.5 | 24.5*24.5*22.2 | |
| DSG1158022 | T27-115X8.0X22.2MM | PC | 100 | 18.5/19.5 | 24.5*24.5*24 | |
| DSG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DSG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17/18 | 26.5*26.5*19.2 | |
| DSG1257022 | T27-125X7.0X22.2MM | PC | 100 | 18.5/19.5 | 26.5*26.5*22 | |
| DSG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*24 | |
| DSG1504022 | T27-150X4.0X22.2MM | PC | 100 | 18.5/19.5 | 32*32*14.2 | |
| DSG1506022 | T27-150X6.0X22.2MM | PC | 100 | 24/25 | 32*32*19.2 | |
| DSG1507022 | T27-150X7.0X22.2MM | PC | 60 | 27/28 | 32*32*13.5 | |
| DSG1508022 | T27-150X8.0X22.2MM | PC | 60 | 20/19 | 32*32*15.5 | |
| DSG1804022 | T27-180X4.0X22.2MM | PC | 60 | 14/15 | 37*19*17.7 | |
| DSG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*19*22.7 | |
| DSG1807022 | T27-180X7.0X22.2MM | PC | 30 | 12/13 | 37.5*19*13.5 | |
| DSG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 40*30*20 | |
| DSG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DSG2306022 | T27-230X6.0X22.2MM | PC | 30 | 17/18 | 24*24*22.7 | |
| DSG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*27 | |
| DSG2308022 | T27-230X8.0X22.2MM | PC | 30 | 22/23 | 25*24.5*30 |
